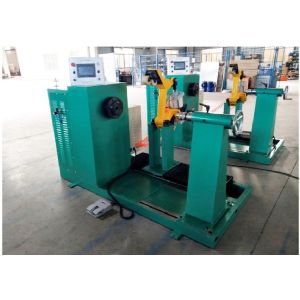

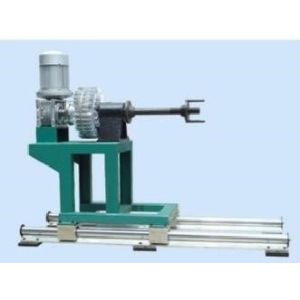

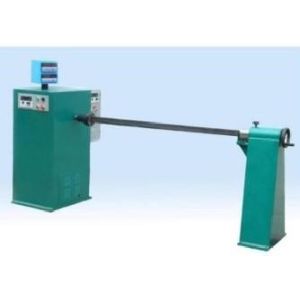

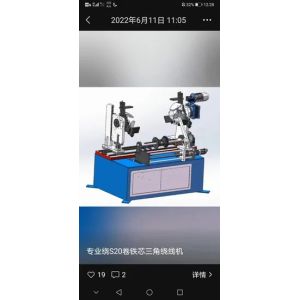

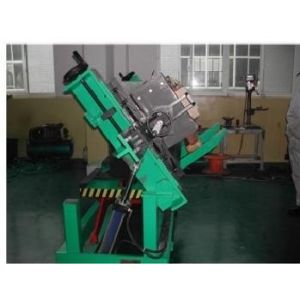

Professional S20 Model Transformer Winding Machine for Circular Oblong Elliptical Rectangular Coils with Iron Core
Ask Latest Price
Video Channel
MOQ :1
Price :3000
Model NO. :S20
Outer Diameter :< 600mm
Axial Height :<800mm
Coil Form :Circular, Oblong, Elliptical, Rectangular
Wire Specification :Enameled Wire
Dimensions :900*900*900
Wire Diameter :Φ 0.3 to Φ 4mm
Flat Wire Size :≤ 3x12mm
Payoff Frame :Double ended flat wire and a set of round wires
Bearing Shaft :Φ 36x450mm
Winding Speed :0-280r/min
Total Power :5KW
Control System :PLC and servo motor
Production Capacity :60000PCS/Year
Transport Package :Wooden
more
Contact Now

Add to Cart
Find Similar Videos
View Product Description
Purpose:
This equipment is suitable for winding circular, elliptical, oblong, rectangular power transformers, transformers, reactances.
The control part of the device coil adopts a PLC and servo motor system, which has a high level of automation and is particularly suitable for the winding production of amorphous high-voltage coils.
Model/Parameter: JC-800

Outer diameter of wire coil: ≤ 600mm

Axial height of coil: ≤ 800mm

Coil form: circular, oblong, elliptical, rectangular

Wire specification: enameled wire( Φ 0.3 to Φ 4mm), flat wire ≤ 3x12mm

Payoff rack: double ended flat wire and a set of round wires

Payoff frame material bearing shaft: Φ 36x450mm

Winding speed: 0-280r/min

Total power: 5KW
