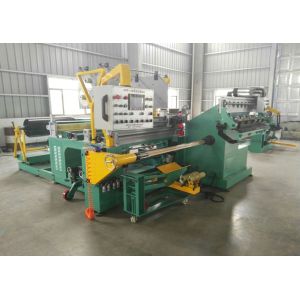

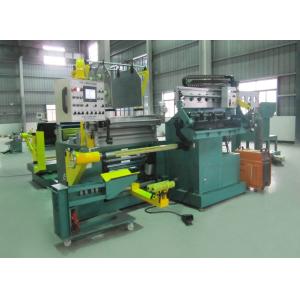

China DHR-4-1400 Model Single Layer Foil Winding Machine for Circular, Oblong, Elliptical, Rectangular Coils with Enameled Wire wholesale

DHR-4-1400 Model Single Layer Foil Winding Machine for Circular, Oblong, Elliptical, Rectangular Coils with Enameled Wire

Ask Latest Price

Video Channel

MOQ :1

Price :3000

Model NO. :DHR-4-1400

Outer Diameter :< 600mm

Axial Height :<800mm

Coil Form :Circular, Oblong, Elliptical, Rectangular

Wire Specification :Enameled Wire

Dimensions :900*900*900

Production Capacity :60000PCS/Year

Control System :PLC and servo motor

Transformer Capacity :50KVA-630KVA

Wire Coil Type :Low-voltage foil coil, High-voltage coil

Core Type :Amorphous (silicon steel) triangular coiling core

Automation Level :High

Winding Type :Single Layer Foil

Machine Type :Automatic and intelligent multi-function winding

HS Code :847981100

Contact Now

Add to Cart

View Product Description

Product Description:
The utility model relates to an automatic and intelligent multi-function winding product which is specially used for winding the core coil of amorphous (silicon steel) triangular coiling core transformer. Suitable for 50KVA-630KVA amorphous (silicon steel) triangular coil core transformer low-voltage foil coil and high-voltage coil production.
My Company:
Main products (suitable for new energy) : Foil winding machine, automatic high pressure winding machine, triangular three-dimensional core foil winding machine, amorphous triangular three-dimensional core high and low pressure integrated automatic winding machine, triangular three-dimensional coiling core (silicon steel, amorphous) slitting and winding machine and other transformer special production equipment; Amorphous
115 invention patents, utility model patents and software Copyrights
Purpose:
This equipment is suitable for winding circular, elliptical, oblong, rectangular power transformers, transformers, reactances.
The control part of the device coil adopts a PLC and servo motor system, which has a high level of automation and is particularly suitable for the winding production of amorphous high-voltage coils.
